TERMURAH SCHNEIDER EasyPact MCCB CVS 630 H (70 kA) Electronic ETS 2.3

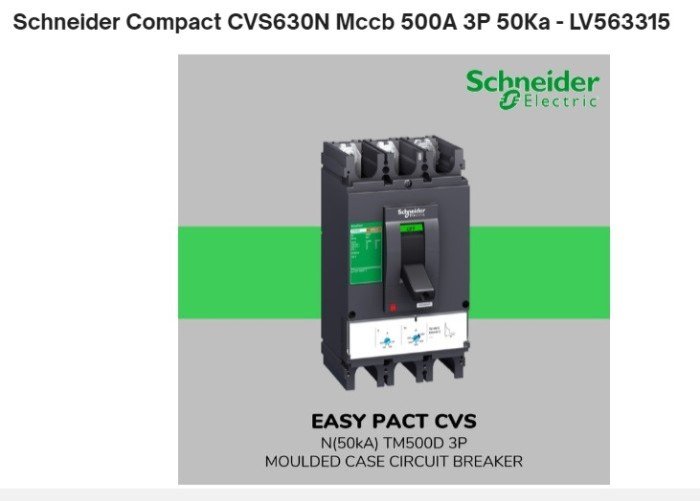

Schneider Compact CVS630N Mccb 500A 3P 50Ka

SS 2 – MTO

ETS 630 315-630 2-10 ln LV563515

[Deskripsi]
Moulded Case Circuit Breakers (MCCB) Alat pemutus sirkuit berbentuk (MCCB) dengan pengaturan yang dapat disesuaikan, dengan rating 16 hingga 630 A, ideal untuk aplikasi di gedung berukuran kecil hingga sedang.

[Spesifikasi]
1. product or component type : Circuit breaker
2. device short name : CVS400F
3. device application : Distribution
4. poles description : 3P
5. protected poles description : 3d
6. Earth leakage protection (Vigi add on) : Without
7. [In] rated current : 630 A at 40 C
8. breaking capacity code : N
9. network type : AC
10. [Icu] Breaking capacity :
-70 kA Icu at 220/240 V AC 50/60 Hz conforming to IEC 60947-2
-50 kA Icu at 380/415 V AC 50/60 Hz conforming to IEC 60947-2
-42 kA Icu at 440 V AC 50/60 Hz conforming to IEC 60947-2
11. utilisation category : Category A
12. trip unit name : TM-D
13. trip unit technology : Thermal-magnetic
14. trip unit rating : 500 A at 40 C
15. protection type :
-Overload protection (thermal)
-Short-circuit protection (magnetic)
16. control type : Toggle
17. mounting mode : Fixed
18. mounting support : Backplate
19. upside connection : Front
20. downside connection : Front
21. height : 255 mm
22. width : 140 mm
23. depth : 110 mm
24. net weight : 4.7 kg
